Please, help! I'm in a desperate situation!
My MOMO8 tablet probably got hard-bricked as I figured it out from the symptoms. The screen won't turn at all, but when I push the power button the tablet gets heated a little. When I turn it off, the heat is gone.
Some background info:
- When I received my tablet it was Android 2.3. I upgraded it to ICS 4.0.1 first, then to 4.0.3
- I installed CWM Recovery for Ainol Novo9. It seems compatible. Made backups and recoveries a couple of times.
- The tablet would restart a few times while playing games. But it wasn't often.
- The last malfunction with this tablet I remember: I was copying a big file (about 300 MB) to the internal sdcard from my PC. The copy speed was about 400 kbytes/s. I cancelled it. Copied the file to external sdcard. Using ES File Explorer I began copying the file from ext sdcard to int sdcard. The copying process was extremely slow. So I decided to cancel it and force-shut the tab down. After that the tab wouldn't start.
After reading many forum pages on the similar problem I have understood that the NAND chip is most likely out of order. There's no internal sdcard that can be found on the board. I double checked it thoroughly. I found the following guide about how to revive a tablet. I can follow and try these steps but it's a different tablet and a different firmware is provided, so I'm at a loss now.
The following questions arise regarding that guide:
Is this the only workable method in my case?
Should I try this method?
If yes, should I use the firmware provided (for HeroTab C8/Dropad A) as the first step to revive my tablet?
How can I convert my stock firmware (*.img format) or a backup made with CWM Recovery into the kind of firmware mentioned above?
Any other suggestions?
I will greatly appreciate any help here.
MAJOR UPDATE -> Tablet Unbricked!!!
Since there was no way for me to install the stock firmware via LiveSuit, as much as I remember, pressing and holding Vol + and inserting
USB cable did nothing for my computer to react to this, I decided to follow this guide.
I resolved my issue by doing the following:
I used the guide above and covered all the steps.
I shorted the pins 7 & 8 (image below) according to this post:
"What this does is make it look like there is no NAND to the processor, so it doesn't try to boot from it, and looks for the bootloader on the external SD."
In my case, the booting from external SD didn't work. The resolution of the issue came after KillerKink advised that I should
flash the firmware the usual way - via LiveSuit. Thanks to him for guiding me in the right direction! I didn't even figure out that I should have done it.
Bottomline and Recommendation.
Don't do anything with your tablet if you're unsure of what your're doing. Don't reproduce my experience if you're not willing to take the risk!
First perform the steps 1 and 3. If it doesn't help, follow step 2.
If you have a bricked Ployer MOMO (assuming nothing works: no charging indicator, no recovery menu, no lit screen, etc...).
Before fixing it with my method make sure the following conditions are met. Don't follow the guide's instruction specifically for the external SD card. But you may try it.
1. First, make sure the tablet is switched off - feel the back of the tablet with your palm. If it's warm, press Power button for 10 seconds and turn it off.
2.
NOTE! This is risky stuff. Don't take the risk if you're not sure.
Open the turned off tablet, find the NAND chip, short the pins. It means you should connect the two pins with a screwdriver or something, and while the pins are being shorted, turn the tablet on by pressing Menu + Power. At this point the tablet should turn on with a white screen and the pins disconnected immediately. However, the screen wouldn't turn on in my case. Having no success I shorted the pins again (turned off the tablet first) and now pressed only Power. I can't tell it made a difference.

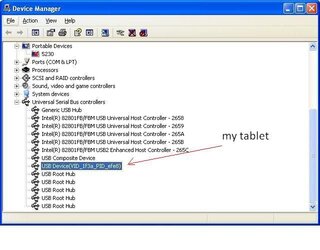

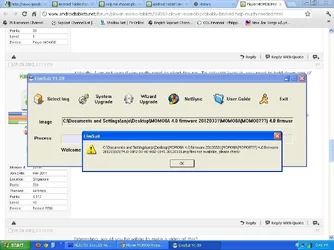

3. Now I have to assume that shorting the pins did something to the hardware and it's now recognized by PC. Use LiveSuit to flash firmware (Press & hold Vol +, connect USB -> Press Power 10 times quickly -> Livesuit notification pops up -> release Vol + and follow instructions). It WORKED! Thanks to Killerkink for encouraging me to use Livesuit at this point.
I will be glad to answer questions related to the topic.
