Yes, but the pinout will be known at some point. First thing I thought is where can I get a connector.

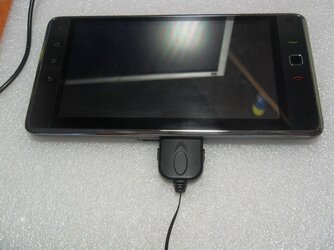

I'd love to make a docking station or three. (Bedside, Car, Office) Charging would be nice, usb would be nice, probably audio as well. Video out wouldn't be needed.
I'd love to make a docking station or three. (Bedside, Car, Office) Charging would be nice, usb would be nice, probably audio as well. Video out wouldn't be needed.
Besides potential for upgrade I hope anyone skilled and brave (not me) enough to take apart the S7 comments on the quality of construction. I was reassured when the an engineer took apart his zt-180 ten inch tablet and said the inside was well constructed. Conversely, I have read that the Notion ink Adam, despite being glorious on the outside is a mess internally.
- Jul 9, 2010
- 3,483
- 436
The pictures linked above from Huawei Belarus are no longer live...

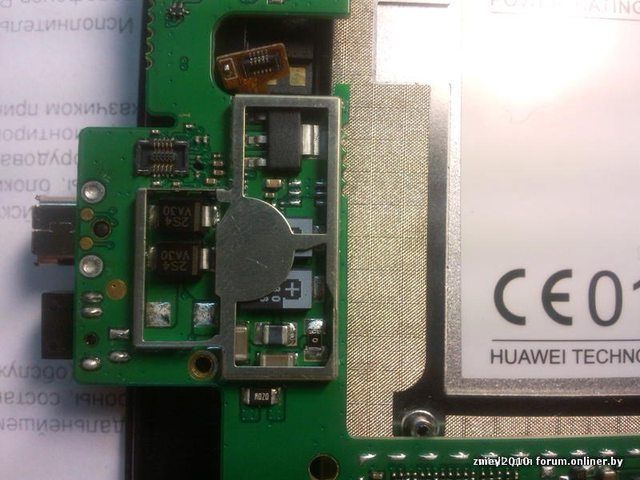

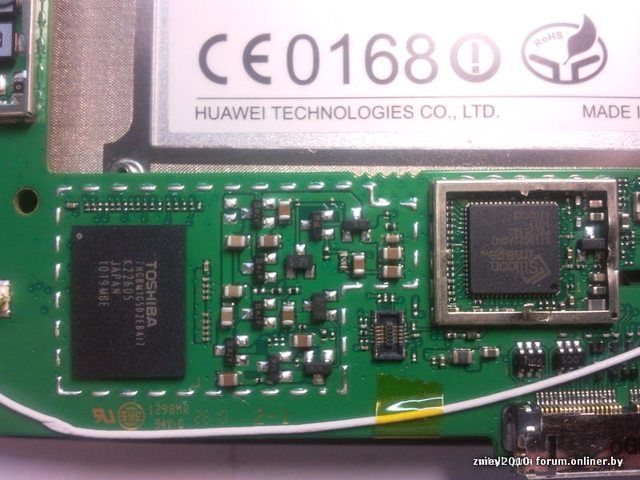

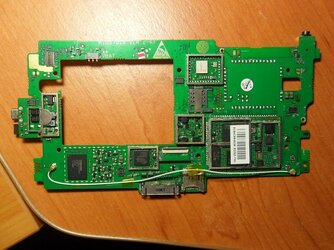

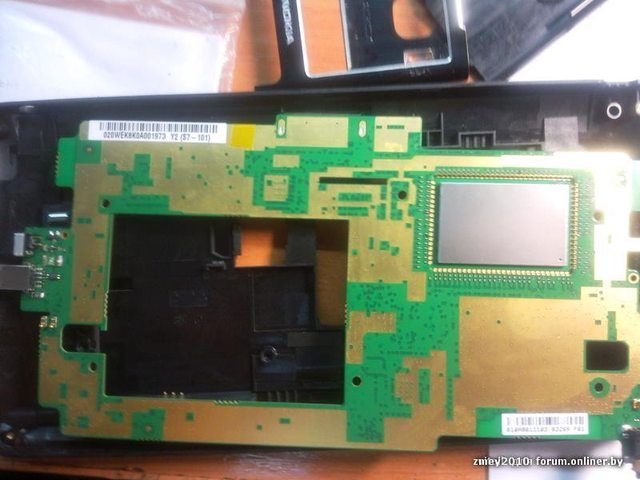

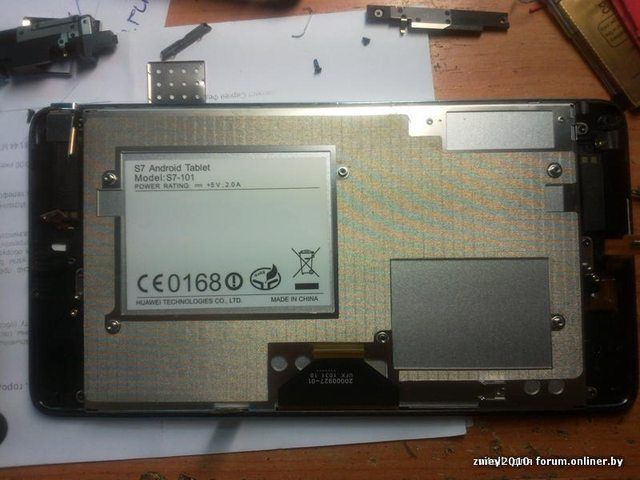

Well there were some pictures from goodane's link: S7 . . . -
Well there were some pictures from goodane's link: S7 . . . -
Last edited:
Last edited:

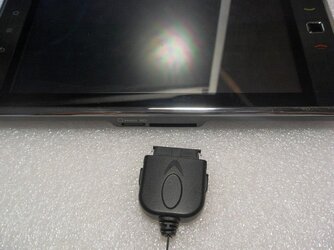

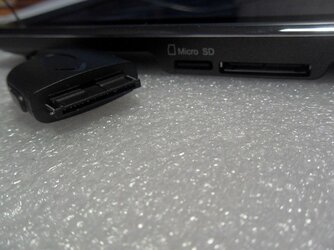

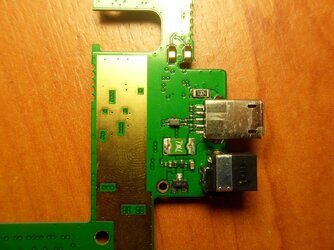

and the conector

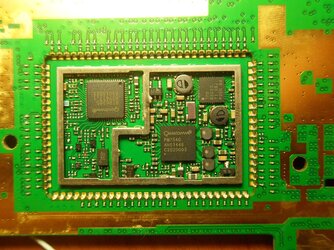

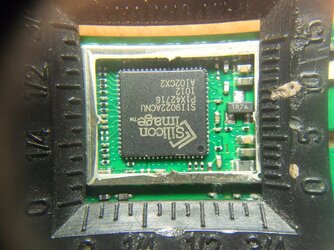

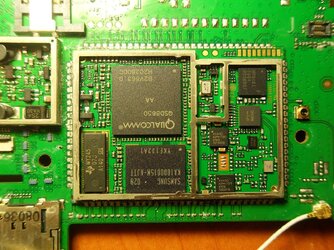

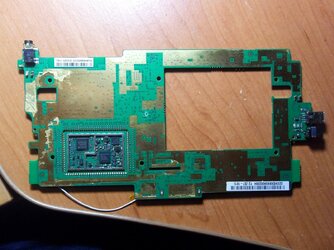

found some info on some hardware chips, you can compelete the rest
SiI9022A - HDMI® Transmitter - Silicon Image - SiI9022A & 9022A HDMI Transmitter
AVAGO ACPM-7371, UMTS 4x4 Power Amplifier (880-915MHz) - Data Sheet - ACPM-7371, UMTS 4x4 Power Amplifier (880-91 5MHz) (850 KB)
AVAGO ACPM-7381 UMTS2100 4x4 Power Amplifier
rfmd RF3161 - Quad-Band GSM850/GSM900/DCS/PCS Power Amp Module - http://www.rfmd.com/CS/Documents/3161DS.pdf
PM7540 Qualcomm power management IC
RTR6285 Qualcomm - transiver and with gps functionality
TPS65023 Texas Instruments 6-channel Power Management IC - Power Management Multi-Channel IC (PMIC) Solutions - PMIC Solutions with and without Battery Charger - TPS65023 - TI.com
not found the wi-fi chip - i presume is the one on the top on one of first pictures but i can not identify it
not found bluetooth - presume is embeded in one of qualcomm chips
not fount accelrometer - same, and/or magnetic compass
found some info on some hardware chips, you can compelete the rest
SiI9022A - HDMI® Transmitter - Silicon Image - SiI9022A & 9022A HDMI Transmitter
AVAGO ACPM-7371, UMTS 4x4 Power Amplifier (880-915MHz) - Data Sheet - ACPM-7371, UMTS 4x4 Power Amplifier (880-91 5MHz) (850 KB)
AVAGO ACPM-7381 UMTS2100 4x4 Power Amplifier
rfmd RF3161 - Quad-Band GSM850/GSM900/DCS/PCS Power Amp Module - http://www.rfmd.com/CS/Documents/3161DS.pdf
PM7540 Qualcomm power management IC
RTR6285 Qualcomm - transiver and with gps functionality
TPS65023 Texas Instruments 6-channel Power Management IC - Power Management Multi-Channel IC (PMIC) Solutions - PMIC Solutions with and without Battery Charger - TPS65023 - TI.com
not found the wi-fi chip - i presume is the one on the top on one of first pictures but i can not identify it
not found bluetooth - presume is embeded in one of qualcomm chips
not fount accelrometer - same, and/or magnetic compass
- Jul 9, 2010
- 3,483
- 436
I thought we might have the BCM4329: Broadcom.com - BCM4329 - Low-Power 802.11n with Bluetooth® 2.1 + EDR and FM (Tx and Rx)
If true, wifi n, FM radio, and bluetooth should be on the same chip
Do not know how to confirm though. But we have dhd.ko, and our wifi firmware is rtecdc.bin... I think it reports itself as a broadcom dongle host driver... Do not recall for sure.
Sensor dump reports an AKM8973 sensor for the orientation, temperature, magnetic field sensor.
If true, wifi n, FM radio, and bluetooth should be on the same chip
Do not know how to confirm though. But we have dhd.ko, and our wifi firmware is rtecdc.bin... I think it reports itself as a broadcom dongle host driver... Do not recall for sure.
Sensor dump reports an AKM8973 sensor for the orientation, temperature, magnetic field sensor.
Balcora
Member
- Feb 6, 2011
- 59
- 15

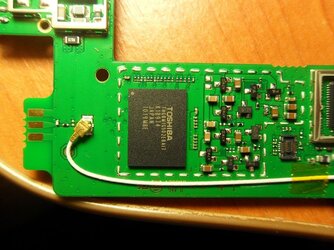

I just realised what the second connector on the Wireless card is (BCM4329), Its the 5Ghz antenna side, this is probably why its left unconnected.
Cost Cutting for manufacture prob made them think; well who is going to use it anyway ?
..
Although i do have 5GHz at home; so might be useful if i can rip out an old Laptop flat panel antenna (5GHz tuned) and hotglue mount it internally if enough room is present .
Also; does anyone happen to know where that connector is from? as that would make my pin out a hell of alot faster.
Cost Cutting for manufacture prob made them think; well who is going to use it anyway ?
..Although i do have 5GHz at home; so might be useful if i can rip out an old Laptop flat panel antenna (5GHz tuned
) and hotglue mount it internally if enough room is present .Also; does anyone happen to know where that connector is from? as that would make my pin out a hell of alot faster
.Good work so far on the hardware front. Would love to get a custom dock if they aren't going to release an official one.
More interestingly to me at the moment though is the info that the BCM4329 has an FM receiver and transmitter built in.
Does anyone know of any apps that can make use of these features? The only android FM app I can find is for the galaxy s which uses a different chip.
Sent from my sdk using Android Tablet Forum App
More interestingly to me at the moment though is the info that the BCM4329 has an FM receiver and transmitter built in.
Does anyone know of any apps that can make use of these features? The only android FM app I can find is for the galaxy s which uses a different chip.
Sent from my sdk using Android Tablet Forum App
